GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System

الاسم التجاري:	JUTAI
رقم الطراز:	جي إل-WLAN
الـ MOQ:	دعم 1-10 أجهزة لكل عينة
السعر:	قابل للتفاوض
تفاصيل التعبئة:	كرتون
شروط الدفع:	/ تي تي، ويسترن يونيون، ويشات، أليباي، بايبال

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

شنتشن الصين

إصدار الشهادات:

مدخلات الطاقة:

تيار مستمر 12-24 فولت/1 أمبير (5 فولت قابل للتخصيص)

تتابع الإخراج:

محطة مشتركة مشتركة 2/3 قناة

حمولة:

تيار مستمر 30 فولت/2 أمبير، تيار متردد 220 فولت/1 أمبير

واجهات:

1 × علبة، 1 × RS485، 2 × RS232

يتواصل:

واي فاي/4G + بلوتوث

درجة حرارة التشغيل:

-30~80 درجة مئوية

القدرة على العرض:

5000 جهاز كمبيوتر شخصى شهريا

إبراز:

WiFi relay controller for industrial gates,4-relay WiFi controller with RS485 port,Wifi access control system with OTA update

4-relay WiFi controller with RS485 port

Wifi access control system with OTA update

وصف المنتج

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System

The GateLink 4-Relay WiFi Controller is a professional industrial-grade control unit purpose-built for industrial gate systems and security setups, offering stable 125V/1A AC load compatibility to work seamlessly with standard industrial access and security hardware. This robust controller brings intelligent, reliable connectivity to traditional industrial control systems, delivering simplified integration and long-lasting performance to meet the strict operational demands of industrial environments.

Equipped with an RS485 communication port and independent relay output design, the controller ensures flexible and secure signal transmission while supporting separate control for multiple connected devices. This structural advantage makes it easy to expand and integrate with a wide range of industrial gates, alarms, and security components, creating a unified and efficient control network without complex wiring or retrofitting. The independent relay output enhances system stability and safety, avoiding interference between different devices and ensuring steady operation in continuous industrial use.

OTA remote update capability brings exceptional convenience to long-term system maintenance, allowing firmware upgrades to be completed wirelessly without on-site intervention or production downtime. This feature greatly reduces maintenance labor and operational disruptions, keeping the controller updated with the latest performance improvements and security enhancements. Designed for durability and stable performance in industrial settings, this 4-relay WiFi controller streamlines device control, strengthens system security, and improves overall operational efficiency for industrial gate and security management.

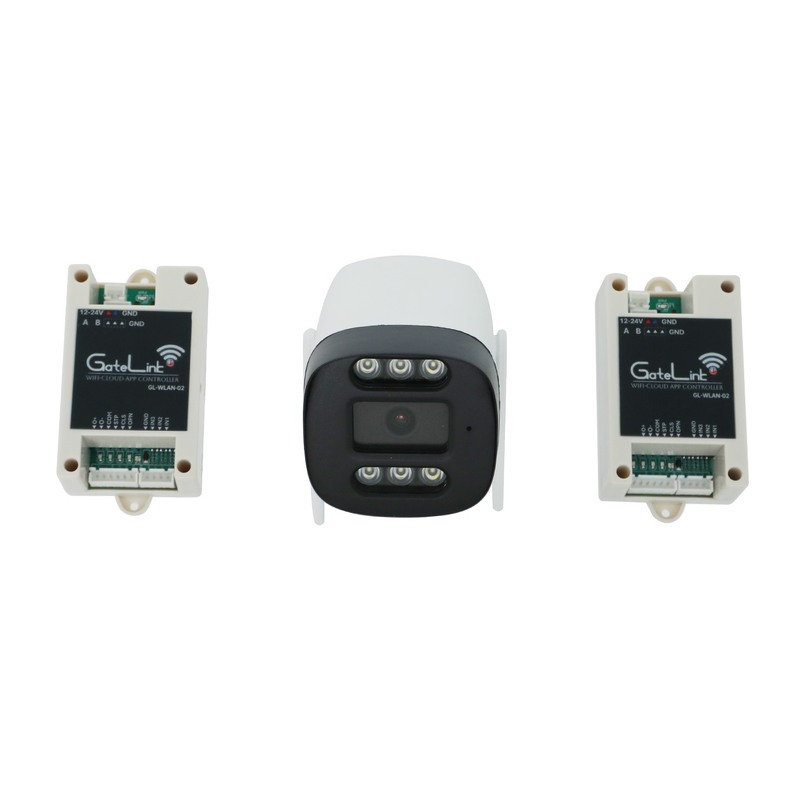

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 0


GL-WLAN-01	GL-WLAN-02	GL-WLAN-03

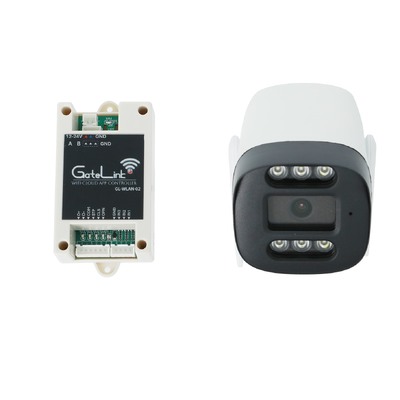

JUTAI GateLink Smart Controller & Camera Core Parameter Summary

General Controller Specifications (All Models)

All industrial-grade controllers support WiFi + BLE dual-mode communication, MQTT protocol and OTA remote firmware update, with built-in mobile APP/Bluetooth remote control and security alarm functions. They feature a wide operating temperature of -30°C ~ 80°C for stable operation in harsh environments.

Model-Specific Controller Parameters

GL-WLAN-01 (2-Relay WiFi Controller)

Power input: DC 12-24V/1A (5V customizable)
Relay output: 2 channels with shared common terminal
Load rating: DC 30V/2A, AC 220V/1A
Dimensions: 109.5 × 41.1 × 25.6 mm

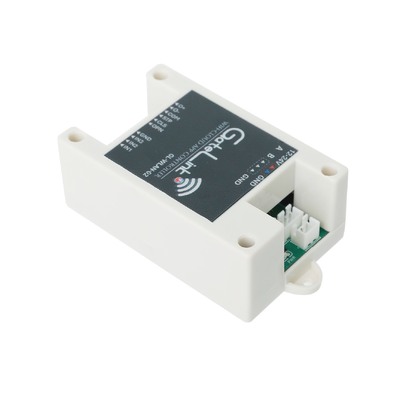

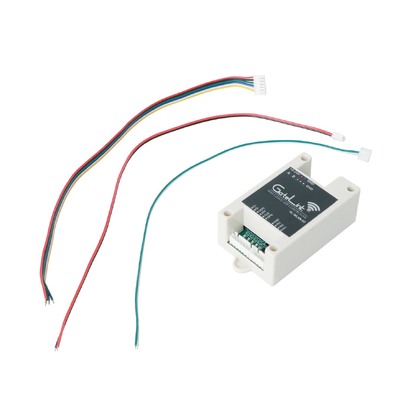

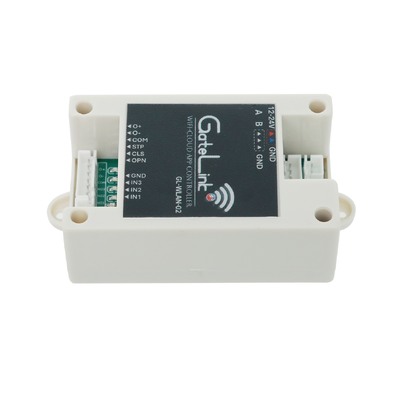

GL-WLAN-02 (4-Relay WiFi Controller)

Power input: DC 12-24V/1A (5V customizable)
Expansion port: 1 × RS485
Relay output: 3 shared common channels + 1 independent channel
Load rating: DC 30V/1A, AC 125V/1A
Dimensions: 96.5 × 50 × 31.4 mm

GL-WLAN-03 (4-Relay 4G Controller)

Power input: DC 12-48V (max peak voltage 60V)
Communication: 4G + WiFi + BLE triple-mode
Expansion ports: 1 × CAN, 1 × RS485, 2 × RS232
Input: 4-channel isolated digital input
Relay output: 4-channel independent NO/NC output
Load rating: DC 30V/10A, AC 220V/10A (high-power support)
Dimensions: 135 × 80 × 40 mm

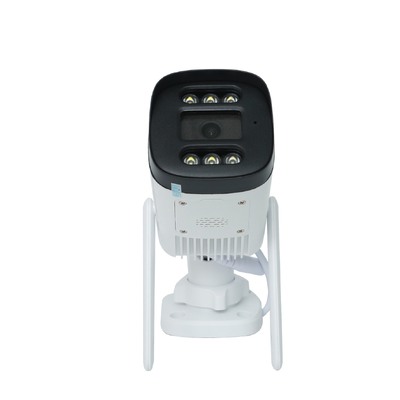

Camera Pixel Parameters

GL-200H26-IR WiFi Camera: 2.0 Megapixels (2MP)
GL-R300H265-IR WiFi Camera: 3.0 Megapixels (3MP)
JTNP-ZS500W(D)-RA5 LPR Camera: 1080P HD resolution

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 4

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 5

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 6

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 7

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 8

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 9

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 10

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 11

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 12

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 13

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 14

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 15

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 16

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 17

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 18

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 19

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 20

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 21

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 22

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 23

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 24

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 25

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 26

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 27
